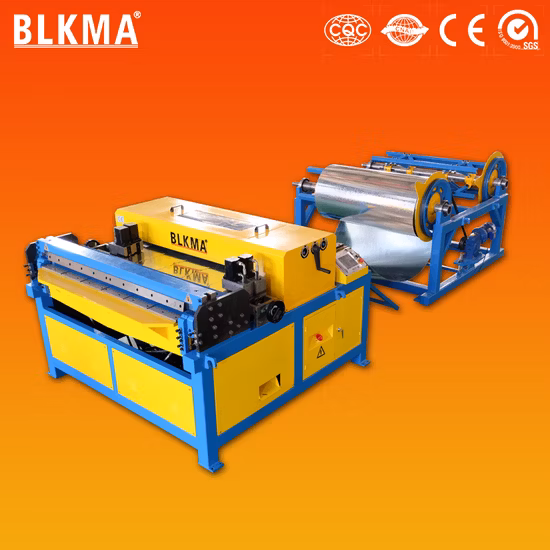

Auto Duct Production Line 3 /Rectangular Pipe Maker

Basic Info.

Model NO.	ADL-3-1300
Max Working Speed	15mm/Min
Weight	3.5t
Voltage	380V/220V or Customized
Operation Type	CNC
Max Width	1300-1500mm
Sheet Thickness	0.5-1.2mm
OEM	Available
Power	7.5kw
Certification	CE, ISO, SGS
Function	Square Duct Production
Usage	Automatic Control Operation
Color	Optional
Transport Package	Exporting Package
Specification	5500*1950*1350mm
Trademark	BLKMA
Origin	Anhui, China
HS Code	8462219000
Production Capacity	300sets/Per Month

Product Description

CNC rectangular duct production line 3

YOUTUBE VIDEO

https://youtu.be/v2oliq5TO2I

Performance Features:
1. Aluminium alloy suspension arm makes machine easy to operate.

2.The build-in control cabinet reduces wiring as a whole structure and makes it easy to move.

3. The imported configuration is very stable and convenient to use.

Function:

It's can drive blanking for duct ,Meantime,it's very suitable for multi-production like TDF/angle steel inserted flange forming,the angle steel flange and inserted flange can be bent into square -shaped pip automatically.
Main Technical Parameters:

Model	Sheeting thickness (mm)	Max width (mm)	Max working speed (m/min)	Max weight of coil (T)	Dimension L*W*H (mm)	Power (kw)	Weight (T)
ADL-3-1300	0.5-1.2	1300	15	7	5500*1950*1350mm	7.5	3.5
ADL-3-1500	0.5-1.2	1500	15	7	5500*2150*1350mm	7.5	4

Working Flow:

Main import Configuration:

1. Japan Mitsubishi CNC system+Schneider electrical system

2. Beijing Huade + hydraulic system from Taiwan

3. Japan Omron encoder

Basic Configuration:

1. One electric coil cradles, 2 material trays

2..One set leveling and beading equipment

3. Hydraulic angle-shearing machine with four sets of die

4. Hydraulic sheet-shearing machine,hydraulic bending machine,hydraulic press machine

5. A set of CNC computer control system and production software

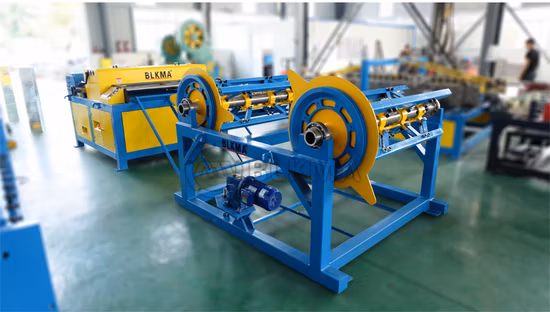

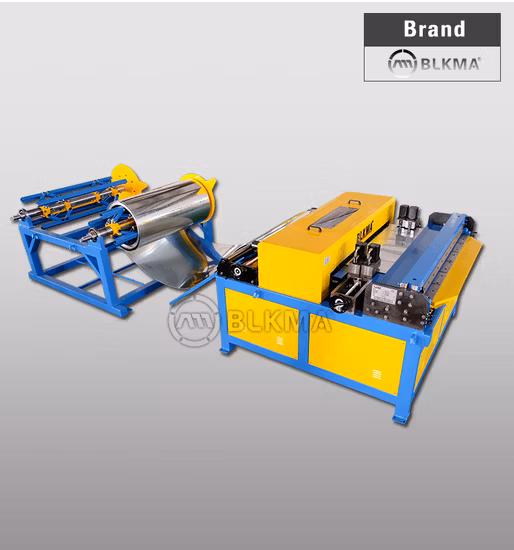

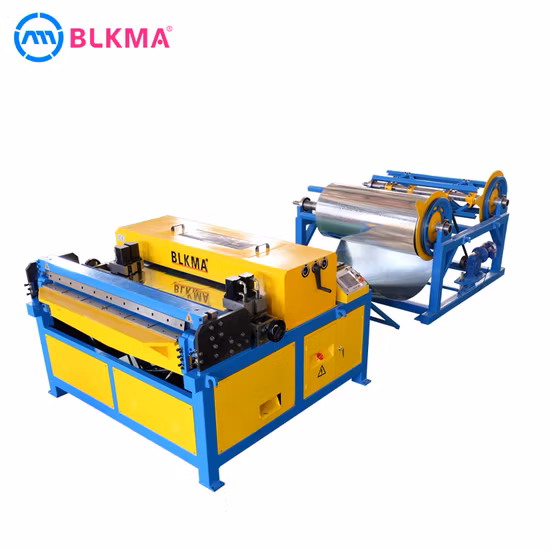

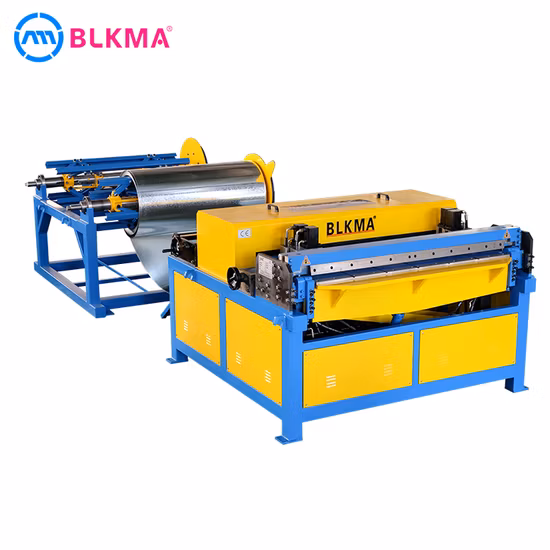

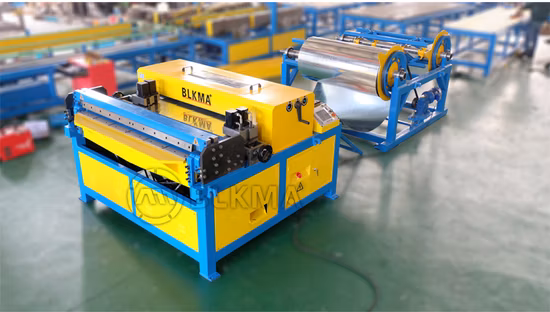

Detailed images:

FAQ

1. Are you factory or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory

for learning operation. Besides, there are detailed installation and operating instructions

attached, it is very simple. We have telephone and email support at 24 hours per day.

3. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be accepted after we both

sides' discussion and agreement.

4. OEM is available?
Yes.
